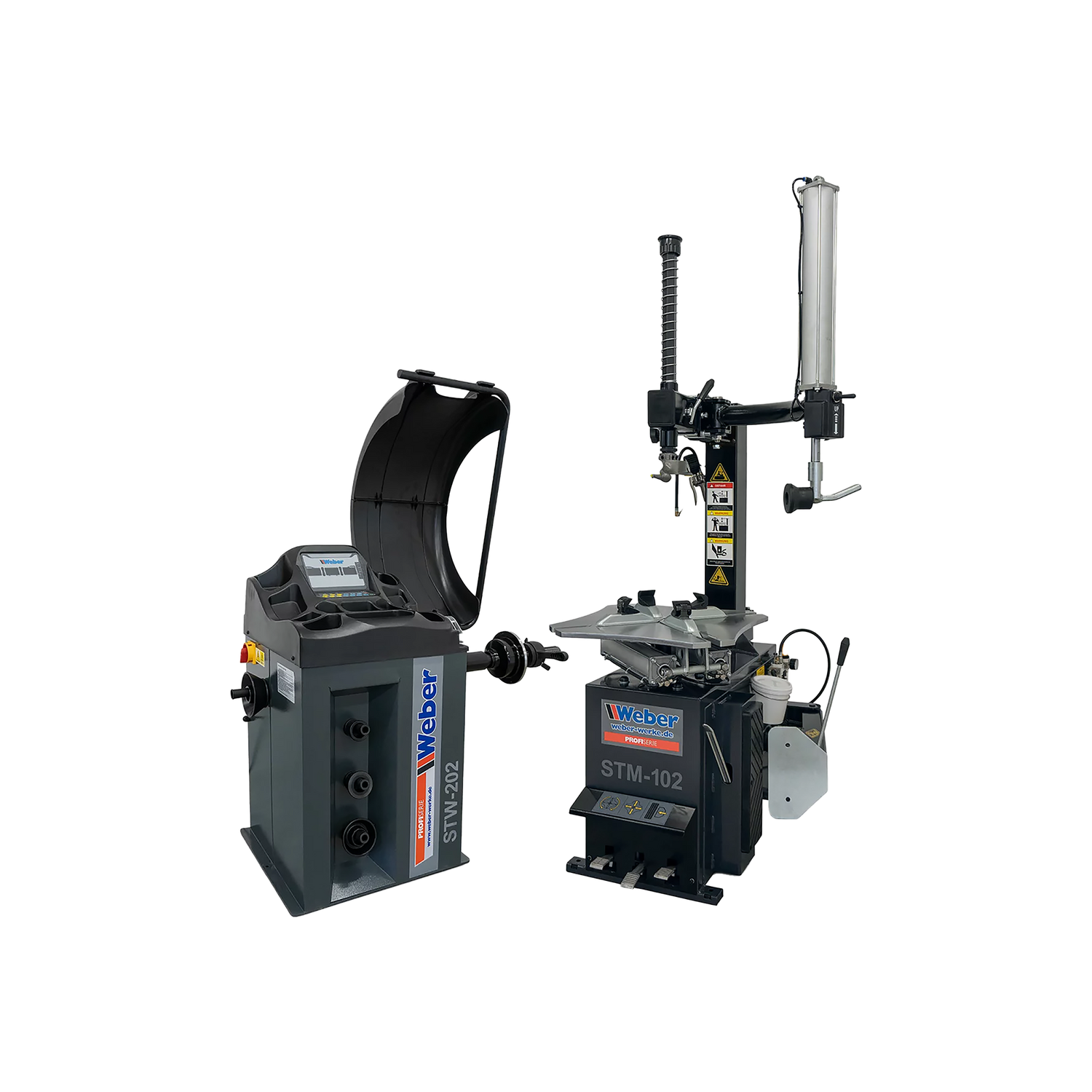

Weber-Werke "AM346" set with tyre changer "STM-102" & wheel balancer "STW-202" + assist arm "HP-ECO-R" 1 Stück

Weber-Werke "AM346" Tyre service set with changer and balancer "STM-102" & "STW-202" + assist arm "HP-ECO-R"

The tyre changer STM-102 is made for cars and light vans and gives you a side-swinging mounting arm plus eccentric locking of the mounting head. It runs a self-centring clamping table with clamps in high-tensile steel. The wheel balancer STW-202 wins you over with its rugged build and microprocessor-controlled electronics with automatic data pick-up and several balancing programmes. The assist arm HP-ECO-R takes most of the fight out of fitting run-flats and low-profile tyres, so the job goes faster and safer.

• Efficiency: fast, precise fitting thanks to the side-swinging mounting arm and the eccentric locking.
• Versatility: several balancing programmes, and you can balance car wheels as well as motorcycle wheels.
• Ease of use: rim data is picked up automatically, and the assist arm is driven by a simple joystick.

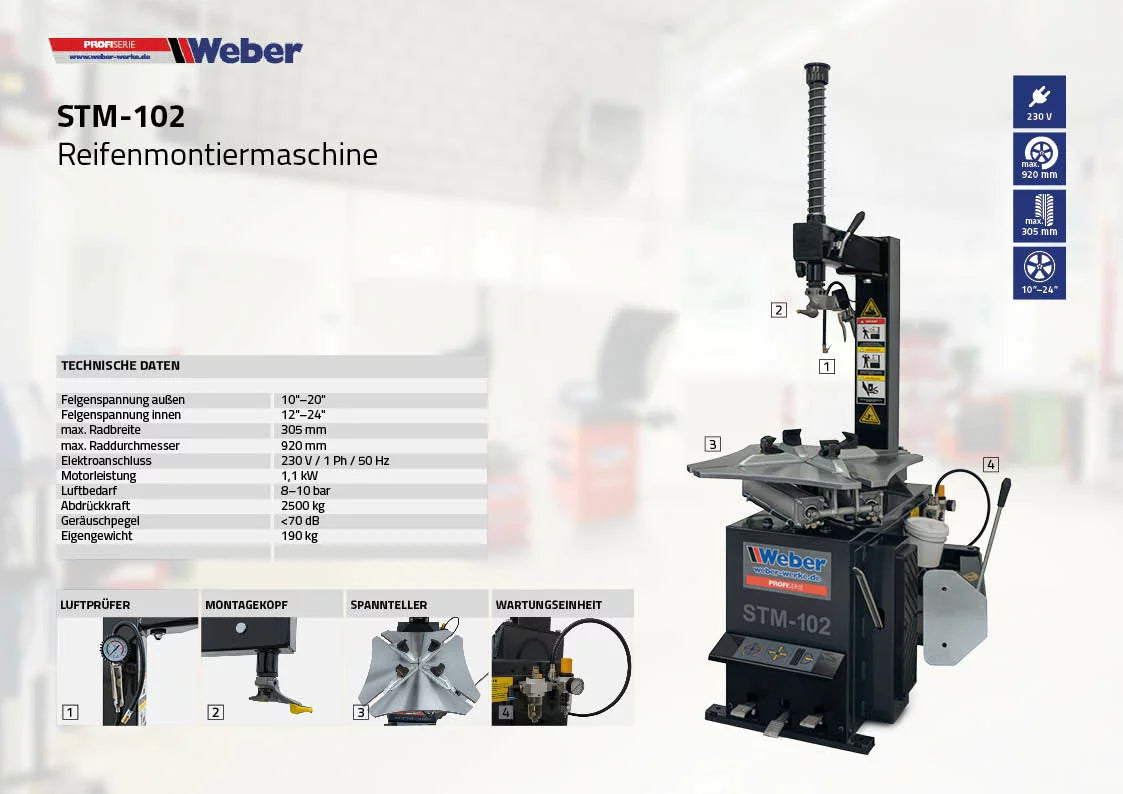

High-precision tyre fitting with the STM-102

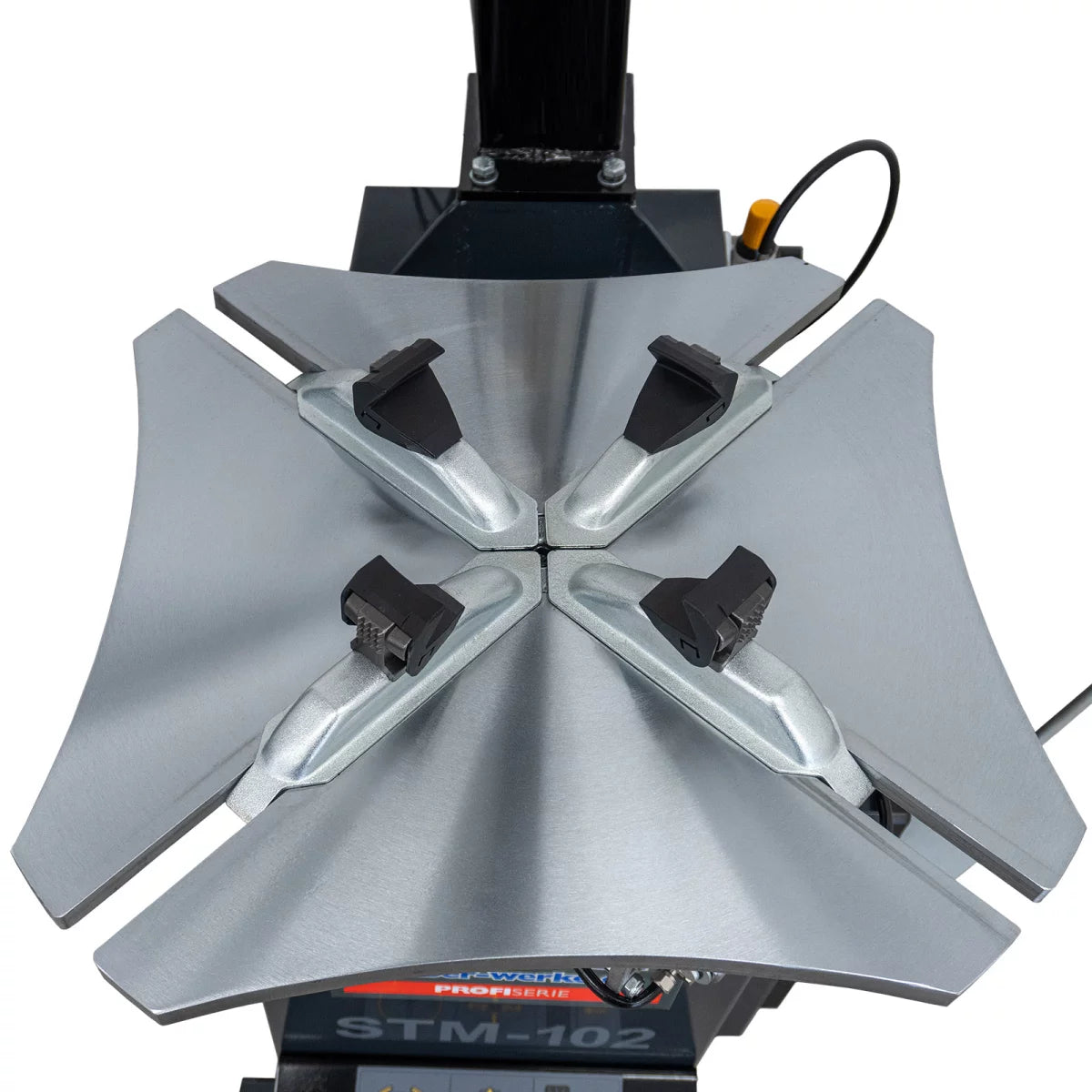

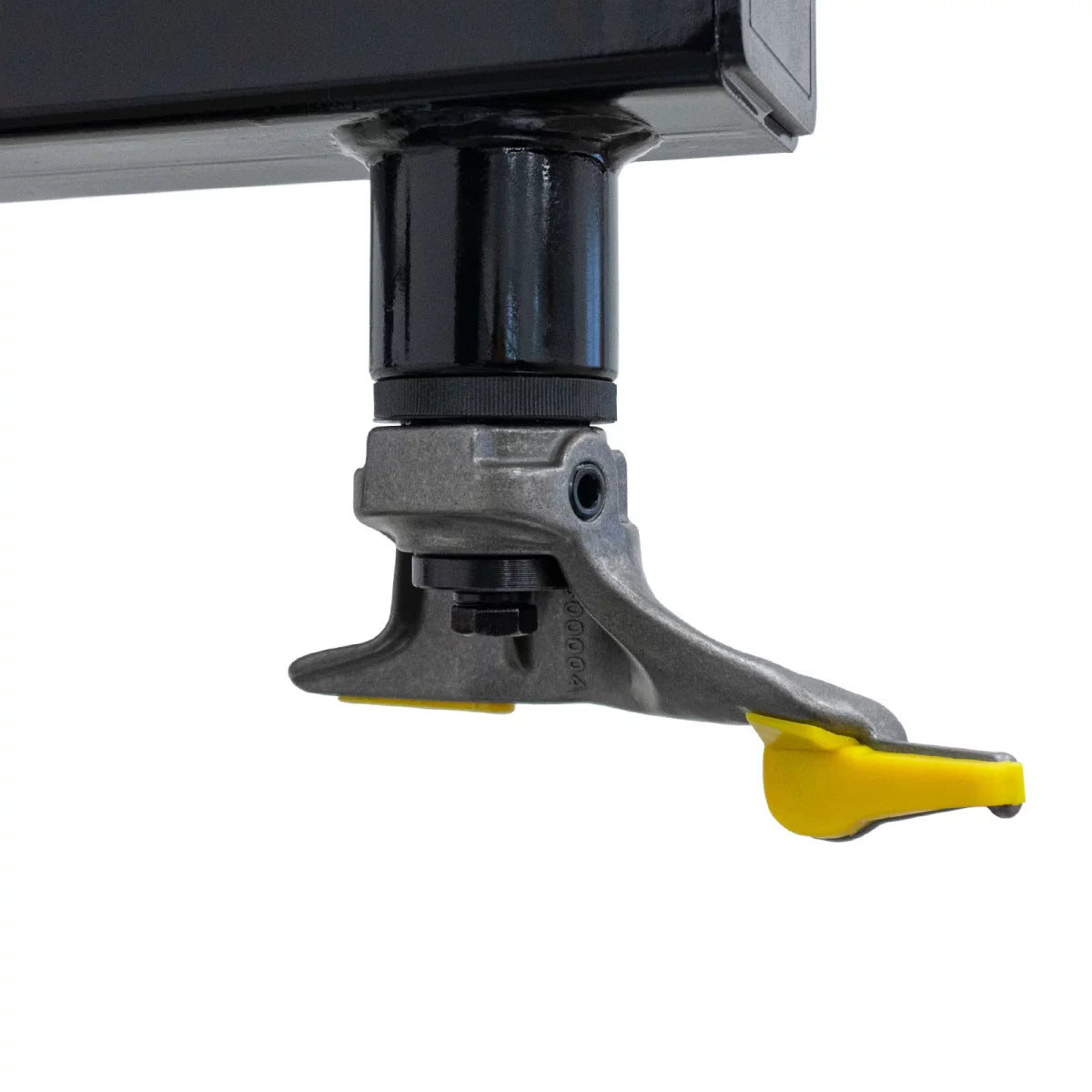

The tyre changer STM-102 brings a stack of features that keep fitting simple and safe. The side-swinging mounting arm and the eccentric locking of the mounting head let you dial it in quickly. The high-tensile steel clamps hold the rim safely from the inside and the outside, while the self-centring clamping table takes rim sizes up to 24". That makes the STM-102 the go-to machine for all sorts of vehicles. The STM-102 comes with a mounting head that has seats for plastic protector inserts, so the rim is protected while you work. That makes it a good fit for high-end, delicate rims.

• Rim clamping, outside: 10"–20"
• Rim clamping, inside: 12"–24"
• Max. wheel width: 305 mm
• Max. wheel diameter: 920 mm
• Electrical supply: 230 V / 1 Ph / 50 Hz
• Motor power: 1.1 kW

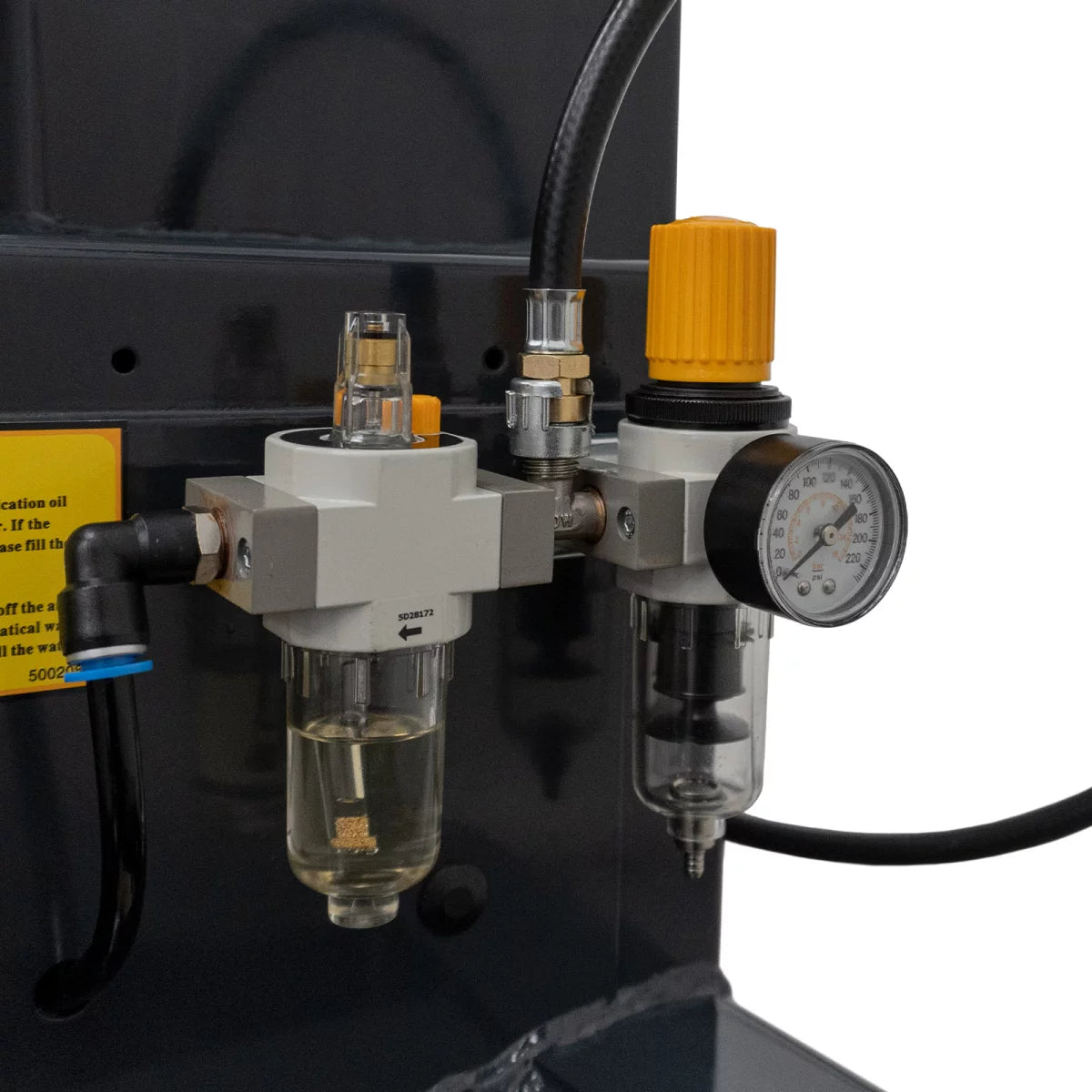

• Air requirement: 8–10 bar
• Bead breaker force: 2500 kg
• Noise level: <70 dB
• Net weight: 190 kg

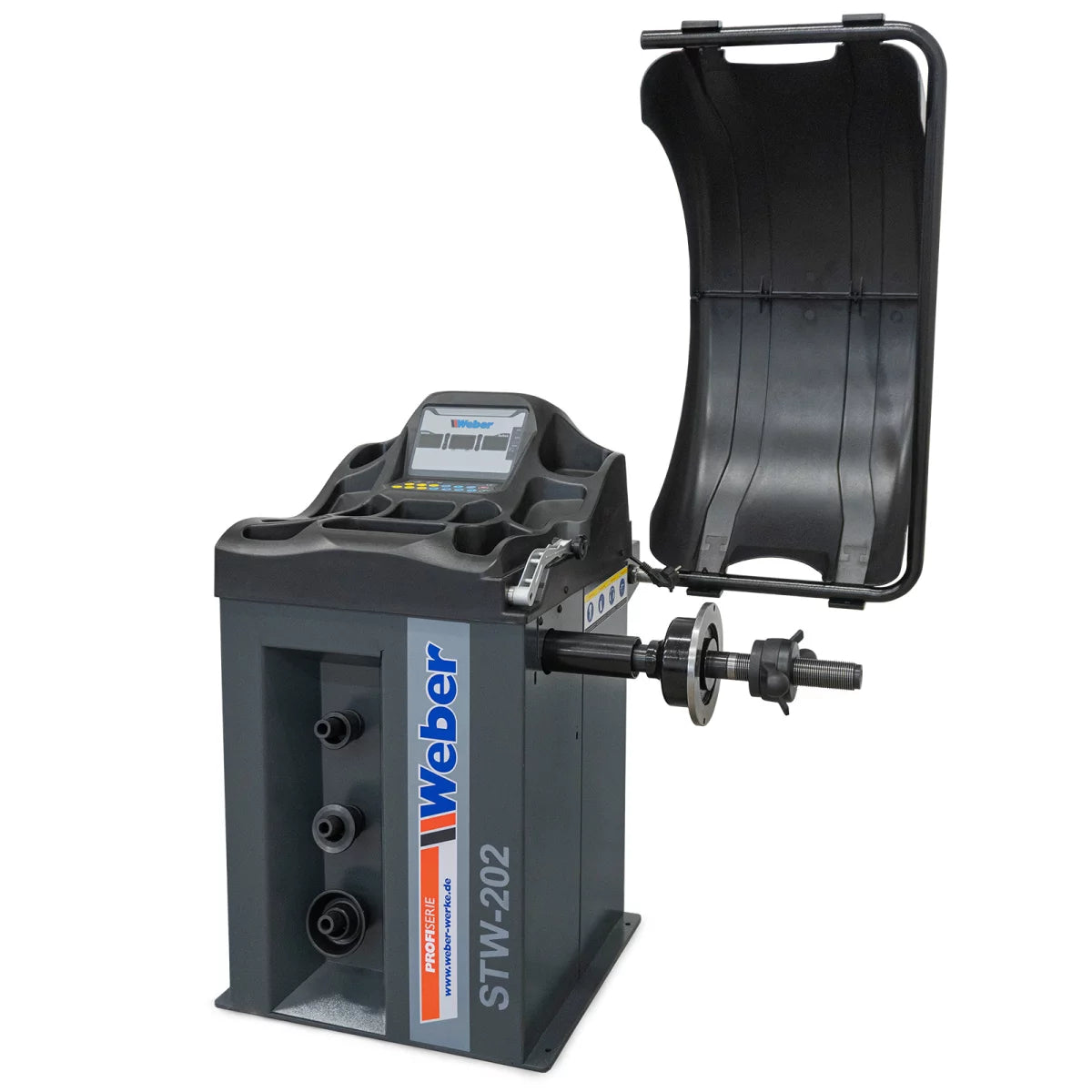

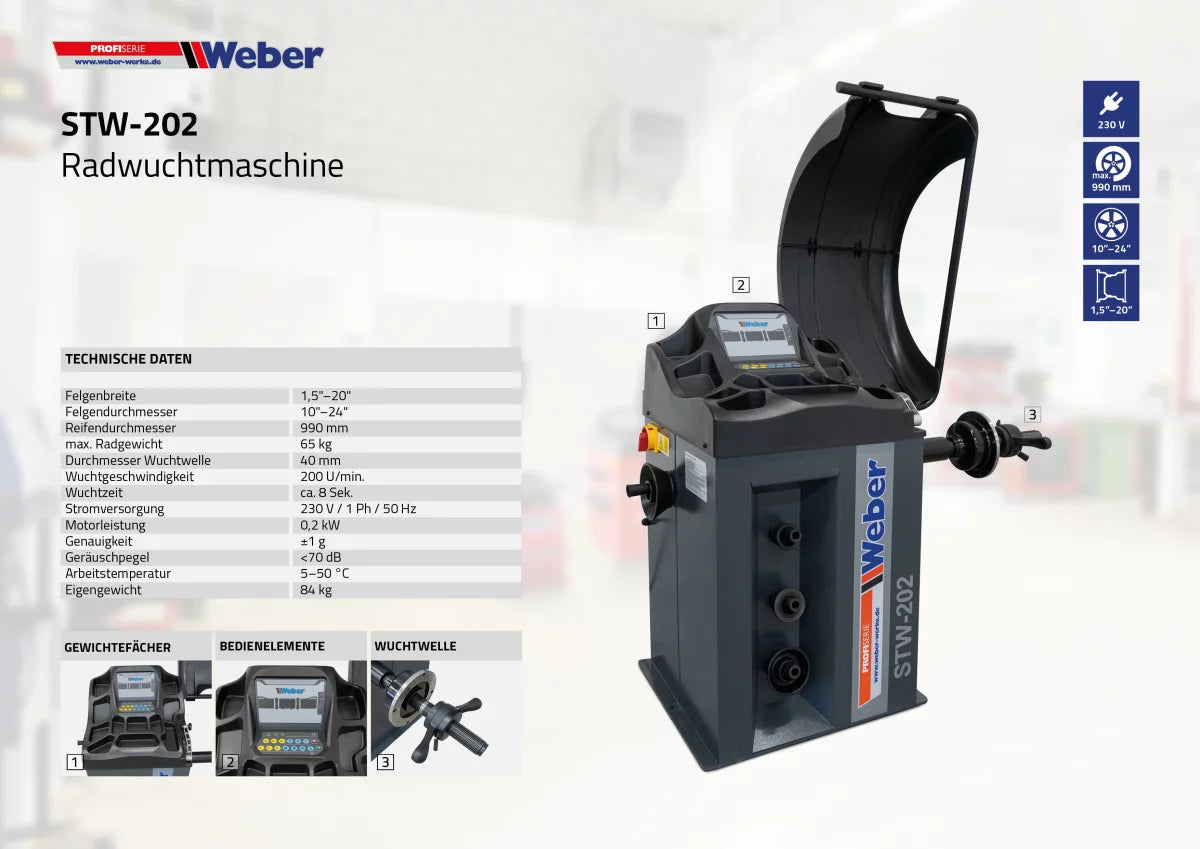

Precise wheel balancing with the STW-202

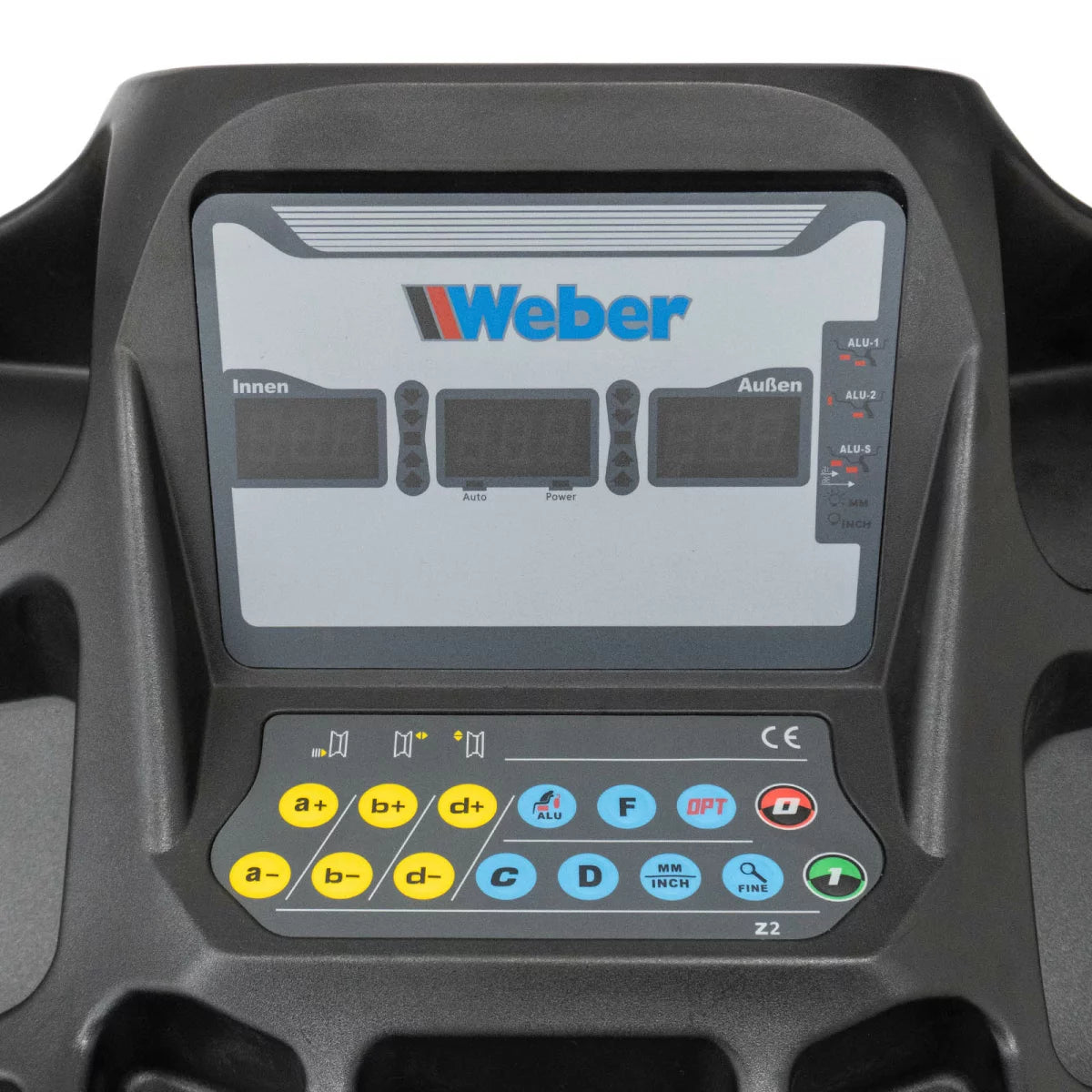

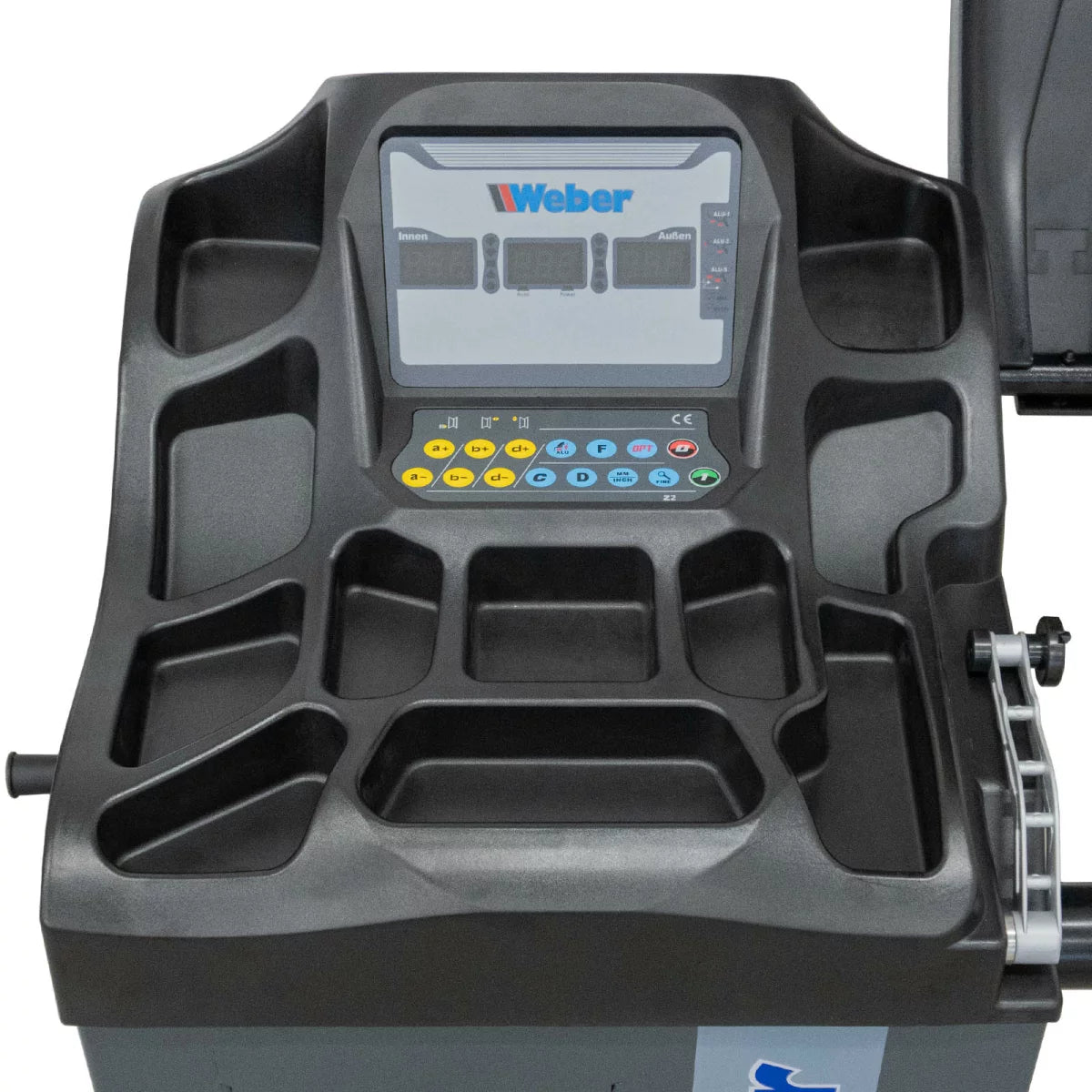

The wheel balancer STW-202 stands out with its rugged build and up-to-date microprocessor-controlled electronics. It gives you several balancing programmes for car and motorcycle wheels, and the gauge arm picks up the rim data on its own. At a balancing speed of 200 rpm and a balancing time of about 8 seconds, results come back fast and accurate. With its built-in software for self-test and calibration, plus the optimisation function for the <5 g weight readout, the STW-202 delivers high precision and repeatability on every run.

• Rim diameter: 10–24"
• Max. wheel weight: 65 kg
• Noise level: <70 dB
• Motor power: 0.2 kW
• Electrical supply: 230 V / 1 Ph / 50 Hz
• Net weight: 84 kg
• Rim width: 1.5–20"
• Wheel diameter: 990 mm
• Balancing speed: 200 rpm
• Balancing time: about 8 sec.
• Accuracy: ±1 g
• Working temperature: 5–50 °C

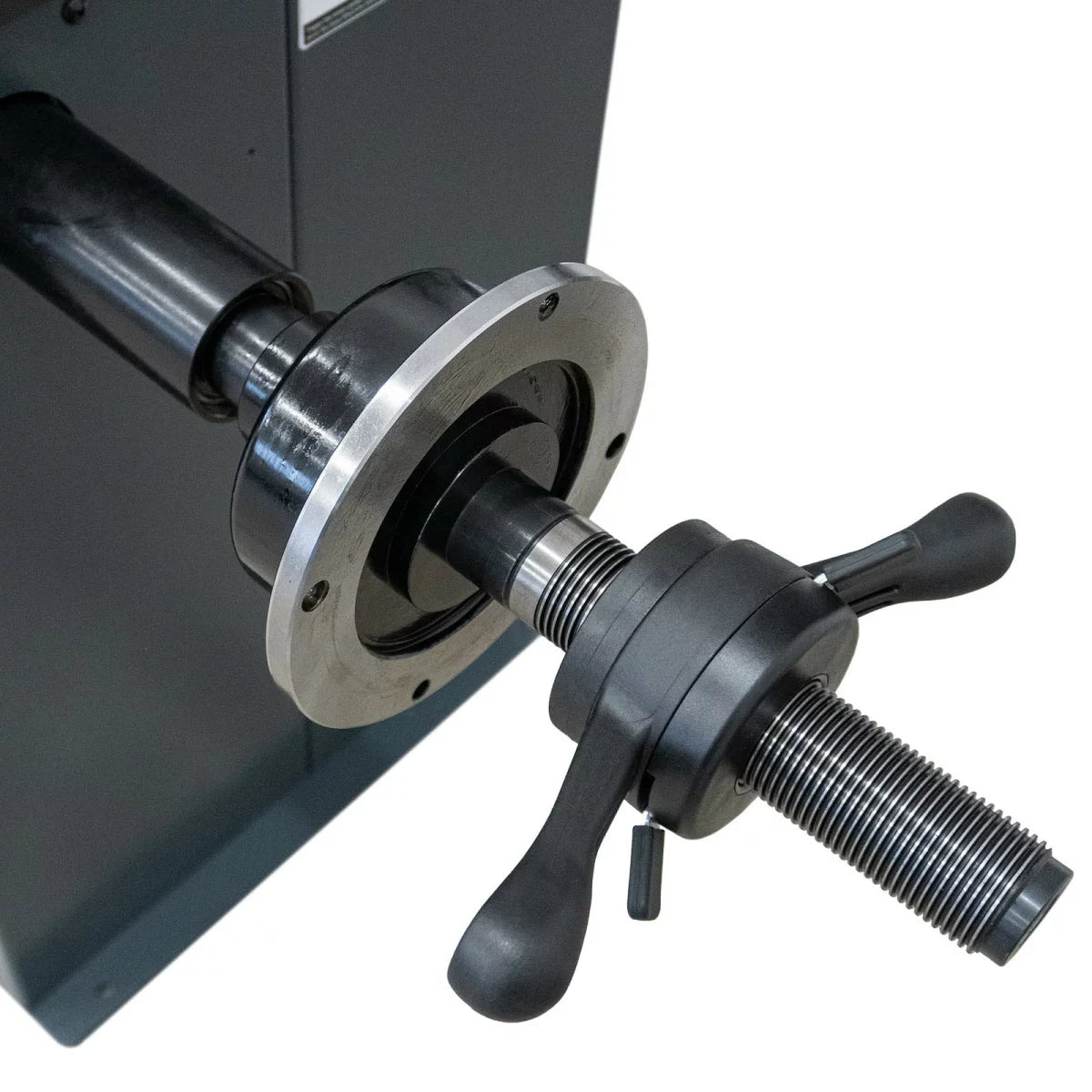

• Balancing shaft diameter: 40 mm

Easy fitting of run-flat and low-profile tyres

The assist arm HP-ECO-R is built specifically for fitting run-flat and low-profile tyres. You drive it with a joystick that controls a pneumatic cylinder. The arm carries a solid bead-press roller and a lift blade that push the bead down and lift the tyre during demounting. The assist arm makes tyre fitting faster and safer: less muscle needed, more control over what you are doing. That pays off above all on run-flats and low-profile tyres, which fight back because of their stiff sidewalls.

• Control: joystick-driven
• Mechanism: pneumatic cylinder
• Function: pressing the bead down, lifting the tyre
• Bead-press roller: solid and rugged
• Lift blade: for easy lifting of the tyre
