FLEX "BP-M" PXE Hook and Loop Backing Pad 1 Stück

FLEX BP-M PXE Velcro Backing Pad — Precise Pad Holder for the PXE 80 Random Orbital Polisher in Three Diameters

What is the FLEX BP-M PXE Velcro Backing Pad? The FLEX BP-M PXE is a Velcro backing pad for the FLEX PXE 80 12-EC random orbital polisher, which securely holds polishing pads and allows for quick changes – available in Ø30mm, Ø50mm, and Ø75mm diameters for different working areas.

Anyone who works with the FLEX PXE 80 12-EC knows: the real strength of this compact polisher lies in its versatility. Depending on the work area, pad size, and task, the machine needs the right Velcro backing pad. The FLEX BP-M PXE Velcro Backing Pad is the direct interface adapter between the machine and the polishing pad – and is available in three diameters that cover the entire range of applications for the PXE 80.

In everyday detailing with the PXE 80, the backing pad significantly determines how precisely and effectively the machine works in a specific area. A backing pad that is too large on tight surfaces loses control; one that is too small on medium surfaces unnecessarily increases working time. The BP-M PXE solves this problem with its three size variations, which enable the optimal combination of surface coverage and precision for every application situation.

The "M" in the product name stands for the medium hardness of the foam backing of the Velcro pad. This medium hardness offers a good compromise between adaptability to curves and contours on the one hand and surface stability for even polishing pressure on the other – a crucial factor for reproducible results in professional detailing.

• Three diameters for a seamless range of surfaces. Ø30mm for the smallest detail areas and badges, Ø50mm as a universal size for most PXE 80 work, Ø75mm for larger areas with a compact polisher. This means a single type of backing pad systematically covers the entire working field of the PXE 80.
• Velcro connection for quick pad changes without tools. The Velcro system allows pad changes within seconds – no screwing, no tools. In everyday work, this means: change the pad, continue polishing. Especially with multi-layer corrections (Cut, Medium, Finish), this quick change makes a noticeable difference in time.
• Medium-hard foam backing for adjusted polishing pressure. The M-mount gives the polishing pad slight leeway to adapt to contours – door edges, bumper radii, or mirror curves. At the same time, it is firm enough to transfer even pressure across the entire pad surface without springing away.

Practical tip from Detailing1: For professional work with the PXE 80, we recommend having at least two backing pad sizes readily available: the Ø50mm as the main pad for most tasks and the Ø30mm for all areas under 4cm wide. The fastest way to switch between pad and backing plate is to use two mounted backing plates with different pads – simply switch between the machine and the spare plate without having to remove the pad every time.

Velcro Backing Pads in Detailing – Function, Construction, and Why Diameter is Crucial

A Velcro backing pad – also known as a "Backing Plate" in English detailing jargon – is the link between the polisher's spindle and the actual polishing pad. The pad attaches to the underside of the plate via a Velcro system; on its upper side, it is firmly screwed to the spindle thread of the polishing machine. Its design – diameter, material thickness, foam hardness – largely determines the polishing behavior of the entire combination.

The diameter of the backing pad plays a central role here, which is often underestimated. A pad that is significantly larger than the work area will have its outer edges reach into adjacent areas – a direct risk of unwanted processing marks on door edges, trim strips, or spoiler edges. A pad that matches the work surface, on the other hand, gives you complete control: you see the edges, work precisely to the edge, and apply polishing pressure exactly where it is needed.

The foam hardness of the pad's backing also influences how evenly the pad lies on the surface. A soft backing yields – good for heavily curved or irregular surfaces, but on flat areas, it can lead to uneven polishing pressure. A hard backing transfers pressure precisely but offers less adaptation to curves. The BP-M PXE deliberately chooses a middle ground with its medium hardness, making it optimally designed for typical work with the PXE 80.

The Velcro system of the BP-M PXE is designed to securely hold polishing pads – even under the centrifugal force of the rotating eccentric. At the same time, pads can be removed without leaving residue or damaging the Velcro hooks. A point that, in daily work with frequent pad changes between polishing steps, directly impacts service life and costs.

BP-M PXE Ø30 vs. Ø50 vs. Ø75 – Which Diameter for Which Application

The three diameter variations of the FLEX BP-M PXE Velcro Backing Pad are not arbitrary, but systematically cover different working areas of the FLEX PXE 80 12-EC. Understanding these differences is important for making the right choice for your application.

The BP-M PXE Ø30mm (492353) is the smallest pad and thus the precision tool for the smallest surface areas. Typical applications: emblems and logos, narrow trim strips, areas between headlights and fenders, recesses in bumpers or door handle recesses. With a Ø30mm pad and a suitable small pad, even a square centimeter can be precisely polished. This pad is not intended for large-area work – but for work that no other tool can do, it is indispensable.

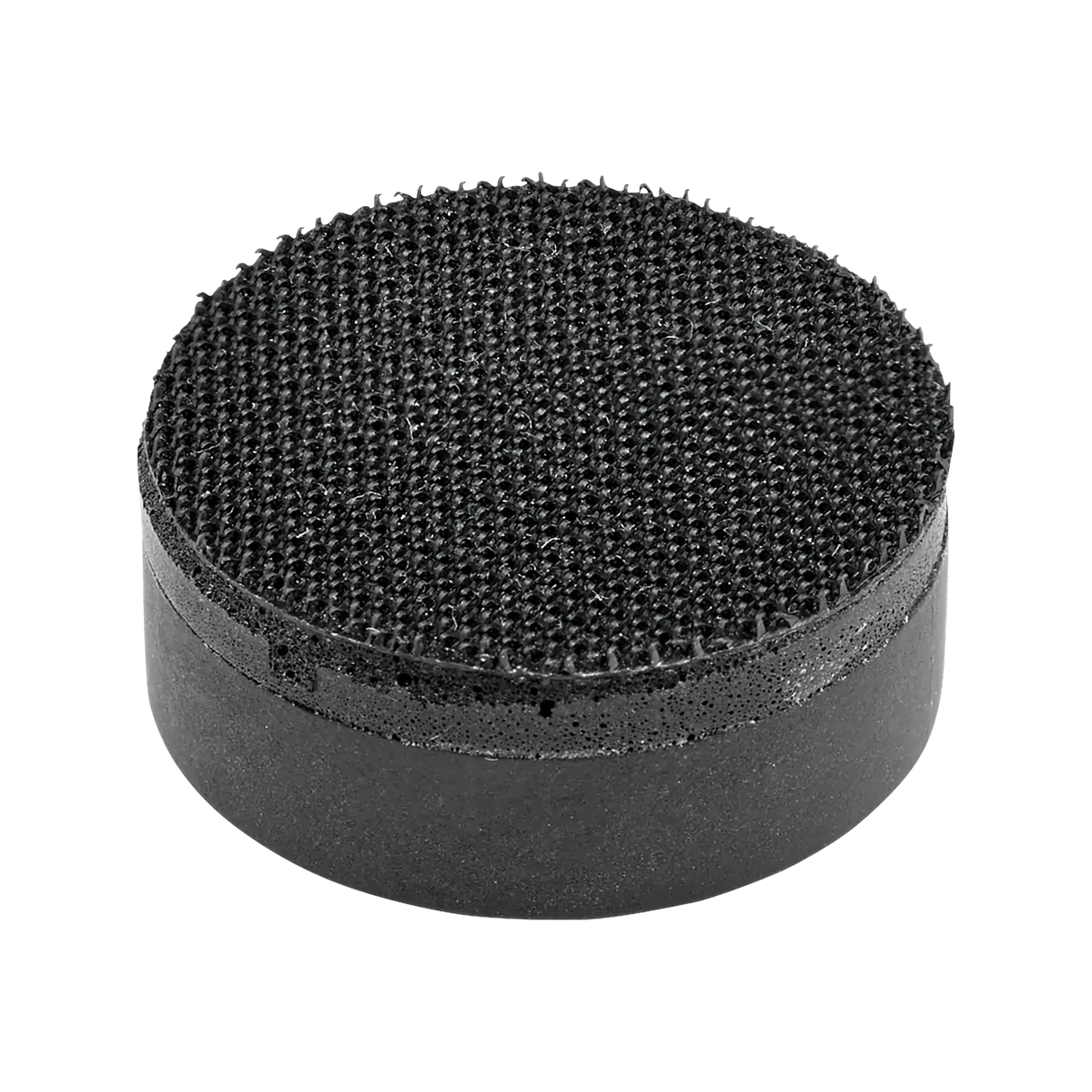

The BP-M PXE Ø50mm (509248) is the universal all-rounder for daily PXE 80 use. It fits most surfaces that make the PXE 80 the tool of choice: door edges, A-pillars, mirror housings, spoiler lips, transition areas on wheel arches. With the Ø50mm pad, you have enough surface coverage for fast work, but still sufficient precision for tight areas. If you are only buying one backing pad for the PXE 80, you should start with the Ø50mm.

The BP-M PXE Ø75mm (492361) offers the largest working surface and is useful when slightly larger, accessible partial areas are to be worked on with the PXE 80 – for example, when repolishing areas that were not perfect with the 150mm polisher. The Ø75mm pad remains significantly smaller than the standard 150mm pad, but offers noticeably more surface performance compared to the Ø50mm.

BP-M PXE in the Professional Detailing Workflow – Combination with FLEX Polishing Pads

The BP-M PXE Velcro Backing Pad unfolds its full potential in combination with the matching FLEX polishing pads. FLEX offers the PP series for this – PP-C (Cut), PP-M (Universal/Medium) and PP-F (Finish) – which can be directly attached to the backing pad.

In a typical detailing workflow with the PXE 80, work proceeds in several stages. For a paint correction, you start with the PP-C on the BP-M PXE Ø50mm or Ø75mm for the cutting phase, then switch to the PP-M for medium polishing, and finish with the PP-F for finishing. Between each step: remove the pad from the backing pad, press on a new pad, continue. No tools, no screws, no waiting time.

Especially when working on vehicles with many transitions – sports cars, vehicles with prominent spoilers or aprons – this flexibility makes a measurable difference in the total processing time. Anyone who equips the PXE 80 with a set of BP-M PXE pads in various sizes and has the matching pads ready can carry out every polishing stage of a vehicle efficiently and without unnecessary interruptions.

Another advantage in professional operation: backing pads wear out faster than the machine itself. With the BP-M PXE as a separate consumable, the pad can simply be replaced after intensive use without affecting the entire machine. This extends the service life of the PXE 80 and maintains consistently high polishing quality.

FLEX BP-M vs. BP-M/SR – Backing Pads with and Without Shock Absorption Compared

In addition to the BP-M PXE, FLEX also offers the BP-M/SR D30 – a backing pad with integrated shock absorption (SR = shock absorber ring). The difference is relevant and should be considered when choosing.

The BP-M PXE without SR damping transfers the eccentric movement of the PXE 80 directly to the pad and the surface. This is the right choice for most polishing jobs: maximum energy input, direct control, precise power transfer. When performing a paint correction, you want precisely this direct connection between machine performance and the polishing surface.

The BP-M/SR with a damping ring, on the other hand, dampens part of the vibration before it reaches the pad. While this slightly reduces energy input, it protects sensitive surfaces or thin paints from overly aggressive processing. It also reduces perceived wrist vibration during longer work sessions – a comfort factor that becomes quite relevant during hours of detailing sessions.

Our recommendation: The BP-M PXE is the first choice for most professional polishing steps. We recommend the BP-M/SR as an addition for final finishing work on sensitive single-stage paints or very thin clear coats. Both variants have their clearly defined area of application – and anyone working professionally with the PXE 80 benefits from both.

Buying FLEX BP-M PXE – Recommendation for the Right Configuration

For optimal use of the FLEX BP-M PXE Velcro Backing Pad, we recommend the following configuration: The Ø50mm as the main pad for most work, supplemented by the Ø30mm for small areas and precision work. If you regularly work on larger partial areas with the PXE 80, complete the set with the Ø75mm.

All three pads are fully compatible with the FLEX PXE 80 12-EC and fit the standard spindle of the device. The matching polishing pads from the FLEX PP series – PP-C, PP-M, and PP-F – are directly attachable. If you also use the DT Adapter PXE 80, you can further extend the functionality of the PXE 80.

As a consumable, we recommend having at least two copies of the main Ø50mm pad in stock. Velcro surfaces wear out during intensive professional use, and a spare pad on the shelf prevents unexpected work stoppages in the middle of a detailing job. With the BP-M PXE, you invest in the consumable part that makes the transition between machine and result more direct – a small component with a big impact on polishing quality.
